ZT26S

ZT26S

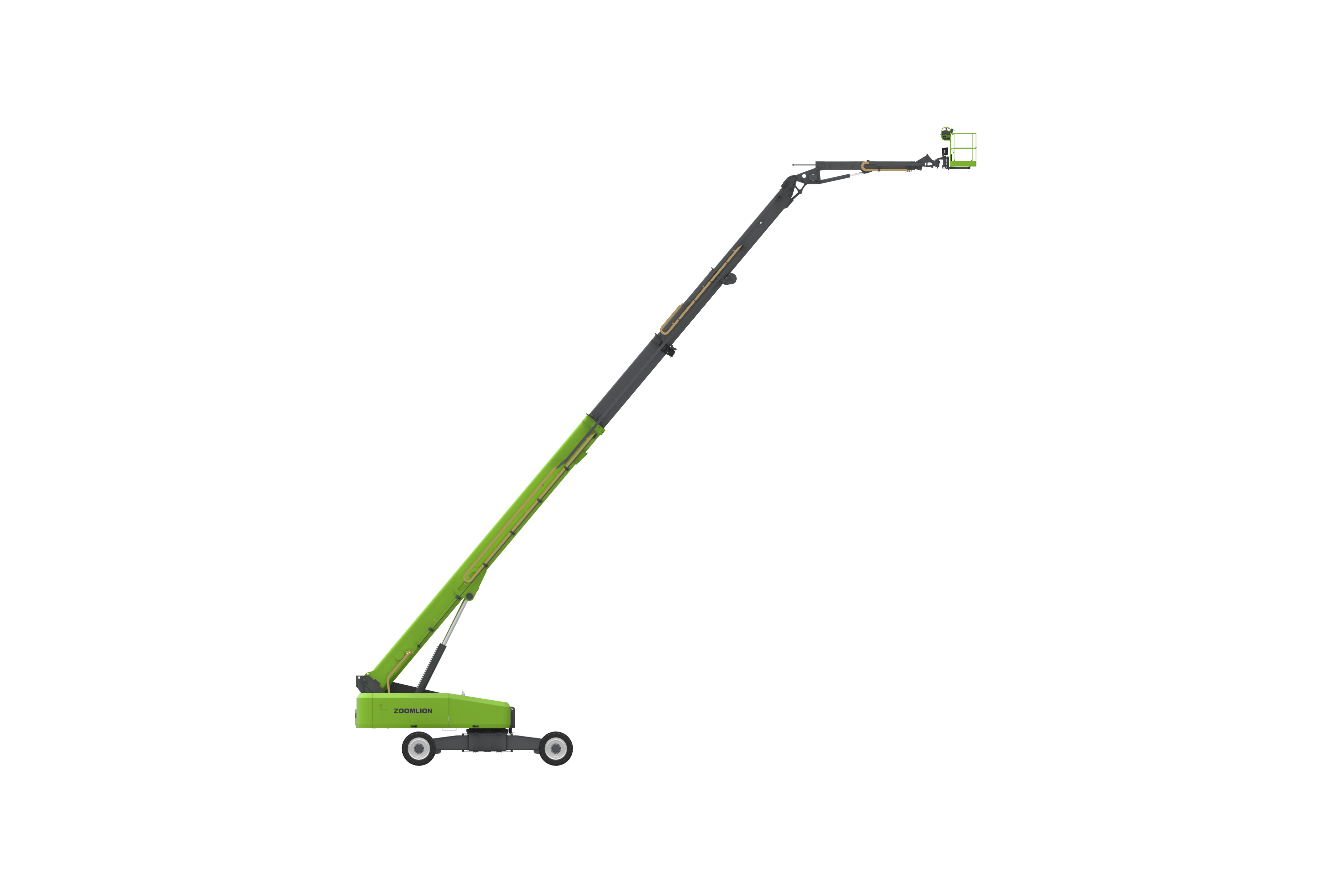

Diesel Telescopic Boom Lift

ZT26S

Perform dual capacity design, up to 300/454kg (660/1000lb), auto-switch by weighing system
Full protection boom and towing chain system, wire rope built-in, no exposed pipeline, safe and reliable
Fully sealed steel hood, good protection from pollution, bearing long lifespan

Get Pricing

27.6 m

Work Height
25.6 m

Platform Height
17.6 m

Horizontal Outreach
300/454 kg

Platform Capacity(Unrestricted/Restricted)

27.6 m

Work Height
25.6 m

Platform Height
17.6 m

Horizontal Outreach
300/454 kg

Platform Capacity(Unrestricted/Restricted)

Advantage introduction

Swing-out engine tray, easy to service
Standard three-stage fuel filtration and two-stage air filtration, adapt to heavy dust environments

More Advantages

Size

Performance

Power

Tire

Weight

Work Height	27.6m
Platform Height	25.6m
Horizontal Outreach	17.6m
A - Stowed Length	12.6m
B - Stowed Width	2.49m
C - Stowed Height	2.75m
D - Platform Length	1.5m
E - Platform Width	0.8m
F - Wheelbase	3.05m
Tread	2.49m
G - Ground Clearance	0.42m

Platform Capacity (Unrestricted/Restricted)	300/454kg
Drive Speed (Stowed)	4.5km/h
Gradeability	35%(19°)
Turning Radius (Inside)	4.4m
Turning Radius (Outside)	6.3m
Turntable Swing	360° continuous
Platform Rotation	±90°
Tail Swing	1.41m
Jib (Range of Articulation)	/
Max. Wind Speed	12.5m/s

Engine	Weichai WP2.3(CN IV) Cummins QSF2.8(CN Ⅲ) Kubota V3307(CN Ⅲ)
Fuel Tank Capacity	150L
Control Voltage	/
Hydraulic Tank Capacity	150L
Drive Mode	Option: 4WD
Steering Mode	Front wheels

Type	Solid tire

Gross

17700kg

Work Height	27.6m
Platform Height	25.6m
Horizontal Outreach	17.6m
A - Stowed Length	12.6m
B - Stowed Width	2.49m
C - Stowed Height	2.75m
D - Platform Length	1.5m
E - Platform Width	0.8m
F - Wheelbase	3.05m
Tread	2.49m
G - Ground Clearance	0.42m

Platform Capacity (Unrestricted/Restricted)	300/454kg
Drive Speed (Stowed)	4.5km/h
Gradeability	35%(19°)
Turning Radius (Inside)	4.4m
Turning Radius (Outside)	6.3m
Turntable Swing	360° continuous
Platform Rotation	±90°
Tail Swing	1.41m
Jib (Range of Articulation)	/
Max. Wind Speed	12.5m/s

Engine	Weichai WP2.3(CN IV) Cummins QSF2.8(CN Ⅲ) Kubota V3307(CN Ⅲ)
Fuel Tank Capacity	150L
Control Voltage	/
Hydraulic Tank Capacity	150L
Drive Mode	Option: 4WD
Steering Mode	Front wheels

Type	Solid tire

Gross

17700kg
