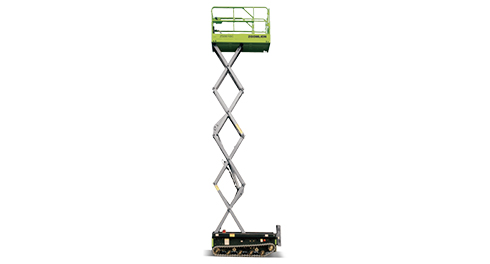

ZS1216C
ZS1216C
Crawler Scissor Lifts
ZS1216C

Rubber crawler provides small ground pressure and great obstacle crossing ability Pivot steering with good maneuverability Simple single handle control for steering and walking Work height of 8.8m with high working efficiency (ZS0610C only)

Get Pricing
Manual Download
ZS1216C
ZS1216C
  • images
  • 13.8 m
    Work Height
  • 0.91 m
    Platform Extension
  • 2.23 m
    Overall Height (Rails Down)
  • 350 kg
    Platform Capacity
  • 13.8 m
    Work Height
  • 0.91 m
    Platform Extension
  • 2.23 m
    Overall Height (Rails Down)
  • 350 kg
    Platform Capacity
ZS1216C
ZS1216C
  • images
Advantage introduction

    • Rubber crawler provides small ground pressure and great obstacle crossing ability

    • Pivot steering with good maneuverability

    • Simple single handle control for steering and walking

    • Work height of 8.8m with high working efficiency (ZS0610C only)

    • Knuckles lubrication-free and maintenance-free

    • AC motor full lifecycle maintenance-free

More Advantages
Metric / Imperial
Size
Performance
Power
Weight
Work Height 13.8m
A Platform Height-Elevated 11.8m
B Platform Height-Stowed 1.62m
C Platform Length 2.3m
D Platform Width 1.12m
Platform Extension 0.91m
E Overall Height (Rails Up) 2.76m
Overall Height (Rails Down) 2.23m
F Overall Length 2.75m
G Overall Width 1.6m
H Ground Clearance 0.15m
Platform Capacity 350kg
Capacity on Deck Extension 113kg
Max. Number of Workers 1
Drive Speed (Stowed) 2km/h
Drive Speed (Raised) 0km/h
Turning Radius 0m
Drive Motor 48V/2×4KW
Up/Down Time 62s/42s
Gradeability 30%(17°)
Max. Working Slope (Lateral/Vertical) 2°/3°
Drive Rear Wheels
Brake Rear Wheels
Battery 8×6V/170Ah (HOPPECKE) 8×6V/180Ah (QUIMO)
Charger 48V/35A
Gross 3750kg
Work Height 45ft3in
A Platform Height-Elevated 38ft9in
B Platform Height-Stowed 5ft4in
C Platform Length 7ft7in
D Platform Width 3ft8in
Platform Extension 2ft12in
E Overall Height (Rails Up) 9ft1in
Overall Height (Rails Down) 7ft4in
F Overall Length 9ft
G Overall Width 5ft3in
H Ground Clearance 6in
Platform Capacity 770lb
Capacity on Deck Extension 249lb
Max. Number of Workers 2
Drive Speed (Stowed) 1.25mph
Drive Speed (Raised) 0mph
Turning Radius 0in
Drive Motor 48V/2×4KW
Up/Down Time 62s/42s
Gradeability 30%(17°)
Max. Working Slope (Lateral/Vertical) 2°/3°
Drive Rear Wheels
Brake Rear Wheels
Battery 8×6V/170Ah (HOPPECKE) 8×6V/180Ah (QUIMO)
Charger 48V/35A
Gross 8270lb
